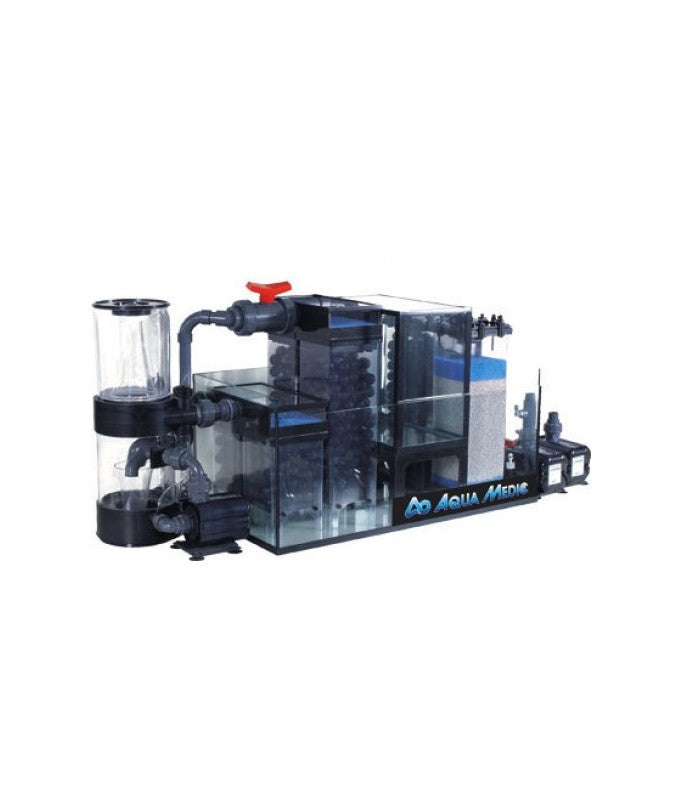

Aqua Medic Reef 2000

 Product description Water exits the aquarium through an overflow chamber or another device, such as an AB Aqua Medic Overflow Box, and flows into the filter. The water is then split at a T-junction. One portion is sent to the Turboflotor Shorty Compact, while the remaining water passes directly through a mechanical sponge filter to the wet/dry biological filter. You can adjust the water flow between the skimmer and biofilter using two ball valves. After passing through the protein skimmer, the water proceeds to a second, smaller mechanical filter and wet/dry biofilter unit. From the biofilters, the water drains into the filter sump. The Nitratereductor and Calciumreactor receive water via a bypass system. This water is drawn from the pressure tube that pumps the purified water back up to the tank. To enhance the water supply for these filters, a dosing pump (SP 3000) can be utilized. The top-up tank containing refill water is situated within the filter sump on a plastic base. The refill mechanism (peristaltic pump SP 3000) is equipped with a level sensor and should be installed above the storage tank. The level sensor is secured in the filter tank and indicates the optimal water level in the filter sump. During the installation of pumps and plumbing, it’s crucial to avoid creating resonance bodies, as these can lead to unpleasant noises depending on the type of pumps used. The external filtration system, Reef 2000, is housed in a separate glass tank. The Turboflotor 5000 Shorty Compact skimmer and both return pumps are positioned adjacent to the glass tank. The overall dimensions are 155 x 45 x 62 cm (L x W x H). The system includes the following components: 1. Glass tank with dimensions of 90 x 45 x 40 cm (L x W x H). 2. Protein skimmer Turboflotor 5000 Shorty Compact featuring a post-switched mechanical filter (sponge) and a biological wet/dry trickle filter filled with Bactoballs. 3. A second mechanical pre-filter sponge with a smaller post-switched wet/dry trickle filter, also filled with Bactoballs. 4. Nitratereductor NR 1000 with an integrated circulation pump. 5. Calciumreactor KR 1000 with an integrated circulation pump. 6. Two circulation pumps Ocean Runner OR 3500. 7. Refill pump SP 3000, equipped with a level sensor. 8. Top-up tank with hose connection for replacing evaporated water.
